OSKAR in da house!

Here he is: OSKAR – Your buddy for the belly.

The Aural Sculpture for F0-D#: Abyssal playback with peerless effortlessnes and dynamics. Powered by M&K Sound®.

OSKAR

An Aural Sculpture by 3be audio – powered by Miller&Kreisel®

from € 6,800.- *

* depending on configuration details, destination of delivery/ tax regulations and applicable special services

More than a subwoofer OSKAR - A Subsculpture

OSKAR is your buddy for the belly, designed for a breezing staging of the abyssal sound regions from F0 to D#.

This Aural Sculpture is sublimating the superior hardware of Miller&Kreisel®, the leading manufacturer of loudspeakers for professional studio playback. As applied to all Aural Sculptures, the driver enclosure is produced in one piece, incl. the internal supporting structure for the 12″-driver in downfire arrangement.

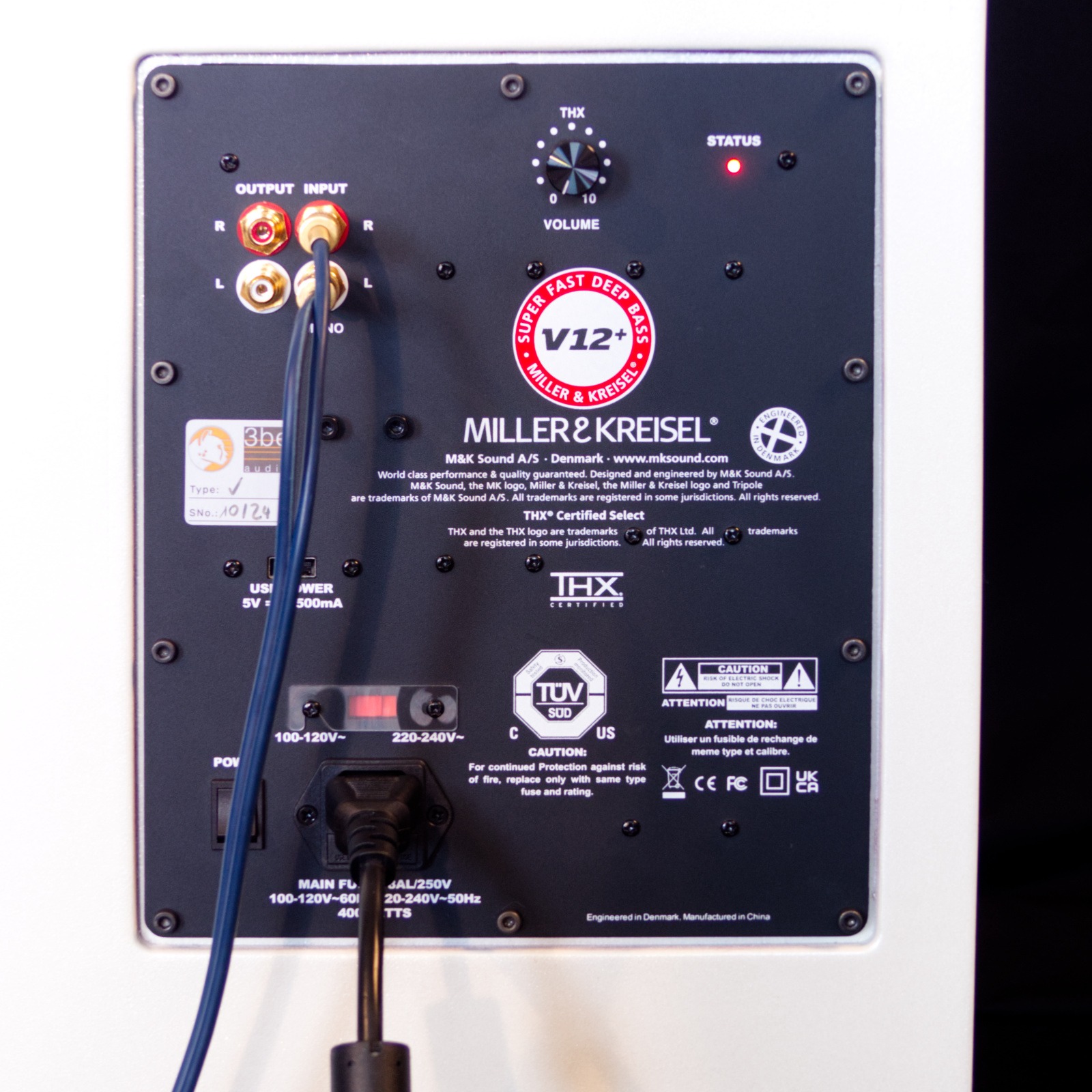

OSKAR is equipped with a 800W peak power amplification module that allows for a wide range of controls to match with room characteristics and additional speaker arrangements, accessible through the proprietary mobile app by M&K.

More design than just design 3BE's one-piece-enclosure

OSKAR’s friendly appearance surely puts a smile on everybody’s face even before the first note is played. But beyond, our enclosure is firstly designed for the most amazing sound experience:

Manufactured as one seamless piece without additional bracing installations or other joint wall elements.

Minimized sub-frequency infusion to enclosure walls by special structural design for driver mount

Bass-reflex enclosure with integral vent pipe

Integral symmetry breaker for inner volume dimensions

More power, more control M&K's driver unit

Charming OSKAR – and what a blast! The power amplifier module commands resources of up to 400W RMS/ 800W Peak to feed the thunderous 12″-driver, both designed and provided by our partner and mentor Miller&Kreisel®.

OSKAR allows for multiple configuration options directly from your listening seat via the convenient, free M&K app, available at the Apple Store or Google Play Store. Further to the basic adjustments to volume, crossover frequency, delay and phase, the M&K app provides advanced control options for Manual EQ and Auto EQ parameters.

Manual EQ allows users to set filter frequency, gain and ‘Q’ for up to four independent EQs. Auto EQ compensates and corrects for acoustical room anomalies which can cause inferior bass performance. By taking measurements in and around the prime listening position, the proprietary M&K App applies acoustical corrections to provide optimized listening conditions and reference bass performance in any home environment.

Specifications
Frequency Response:
20-200 Hz
Average Response In Room +/- 3 dB
Frequency Roll Off:
20 Hz
(-6 dB @ 18 Hz Nearfield)
Amplifier Power Output RMS:
400W
0.5% THD @ 300W vs. 4 Ohms
Amplifier Power Output Peak
800W
Standby Power Consumption:
0.8W
40W Average/ 200W Max.
Dimensions:
H x W x D
37.4 x 14.6 x 14.6 in/ 945 x 370 x 370 mm
Weight:
Netto
48.1 lbs/ 21.8 kg
Hardware/ On-Board Features
Drive Unit:
1 x 12″
Long Throw
Headroom Limiter Maximizer:
Yes
Dynamic Driver Excursion Control
System Principle:
Bass-Reflex
Amplifier Type:
Analog Input/ Switch Mode Power Output
Hardware Power Switch:
Yes
Switch On Standby
Auto Power Standby:
Yes
Line Input/Output:
2 x 2xRCA
Input/ Output - Left/ Right
USB-A Service Power Supply:
Yes
DC 5V/ 500mA
Software/ Control Features
Software:
App
Mobile Devices iOs/ Android
Subwoofer Connection:
Bluetooth
Multi-Subwoofer Control:
Yes
General Volume Control:
Yes
Incl. Mono/ Stereo Feed Switch
Low Pass Cut-Off Frequency:
43-300Hz
Variable Slope 12/ 18/ 24db/ Oct
Phase Adjustment:
0-360 deg.
Delay/ Displacement Correction:
Max. 80ft./ 24.4m
Manual Equalizer:
4-Band
Var. Frequency, Gain, Quality Factor
Room Acoustic Correction:
Yes
Auto Equalizer Measurement
Further Options/ Resources
Color finish:
RAL System
At Buyer's Option
Tactile Customization:
Learn more
At Buyer's Option
