An Aural Sculpture by 3be audio
Fabrication on demand starts from € 15,800.- (stereo set)*
* depending on configuration details, destination of delivery/ tax regulations and applicable special services
NYMOS is our visual tribute to pureness of sound. The outer silhouette follows basically what we found to be also the optimal inner enclosure dimensions for the woofers, i.e., to relieve them from any specific response of the sealed air volume.
Today, NYMOS can be installed in various configurations with stands and driver control units. Besides, some tactile variations are already filed, ready for manufacturing.
The speaker cabinets of 3BE’s Aural Scuptures have originally been engineered for the most authentic sound experience, with significant technical advantages over conventional speaker box design:
Manufactured as one seamless piece without additional bracing installations or other joint wall elements for the most integral resonance management
Inner volume with most distributed 1D/2D dimensions for the most unspecific frequency response
Enclosure material with inner attenuation 3 times higher compared to wood
Homogenous material structure with totally undirected inner energy disspation compared to formed wall materials

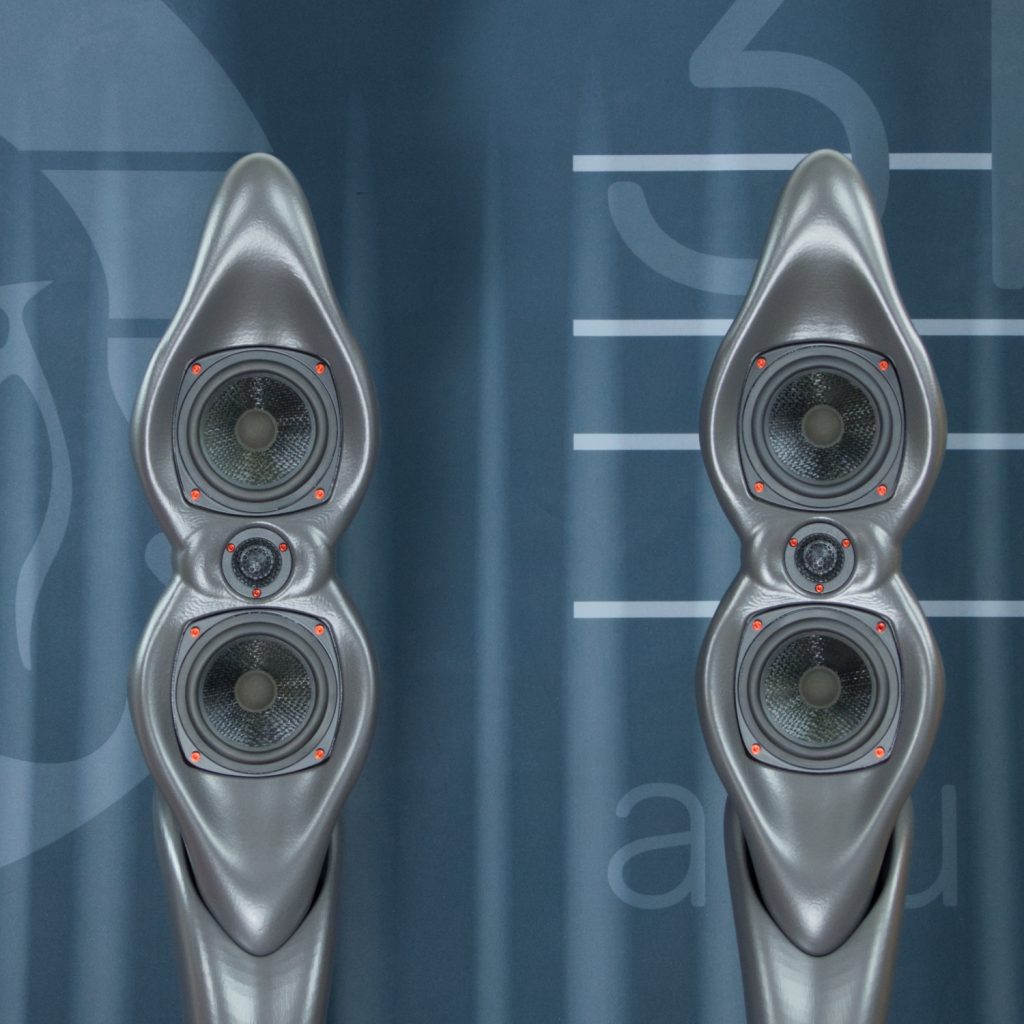

NYMOS is equipped with two 5″-woofers in a D’Appolito arrangement with a 3/4″ dome tweeter. The woofers with aramide cones and 1.4T-magnets from Davis Acoustics are well-proven in many high-end speaker installations over decades up to date. The Illuminator dome tweeter from ScanSpeak presents ribbon tweeter performance from 1k up to 30kHz in a truly minimalistic outer appearance.
The control unit to feed the NYMOS drivers is installed outside of the NYMOS enclosure. This allows for a maximum of flexibility for the visual and acoustic design of both parts. Control units are available as passive crossover units – the classical way of connecting the NYMOS to an existing power amplifier – as well as “active” units with integrated, true bi-amping modules. The filter design comes close to the requirements stated in the theories of Joseph D’Appolito, thus preserving the acoustic benefits of driver arrangement and enclosure design in the best way. All control units are connected to the served NYMOS by the same proprietary type of cable with easy-click-connectors.
NYMOS’ fires creativity. On demand, personalization is possible for countless details, e.g., by the variation of the outer skin, with any abstract patterns, figural applications and/ or personal engravings.
More customization comes with the choice of the appropriate stand, control unit and coloring. Accessories such as the woofer blinds complete the individual fitting process.
| Specifications Serenity | ||
|---|---|---|
|
Nominal Frequency Range (+/- 3dB): |
60-22,000 Hz |
(1) with unbiased crossover |
|
Cut-Off Frequency: |
50 Hz |
-6 dB, nearfield |
|
Nominal Power Rating RMS: |
90 W |
(1) |
|
Nominal Sound Pressure Level (SPL):
|
89 dB/W/m |
(1) |
|
Subsonic resilience: |
68 W @ 25 Hz |
Woofer excursion limit |
|
Dimensions w/o stand, applications: |
H x W x D |
64 x 21 x 47 cm |
|
Weight w/o stand, applications: |
|
9.7 kg |
| Features Serenity | ||
|---|---|---|
|
Enclosure Principle: |
|
Sealed |
|
System Principle: |
|
2-Way |
|
Bass Section: |
2 x 5" |
Aramide ("Kevlar®") Cones |
|
Tweeter: |
1 x 3/4" |
Dome |
|
Crossover: |
|
Externalized. Var. powered/ passive |
|
Connectors: |
1 |
7-pin socket "easy-click" |
| Optional Features | ||
|---|---|---|
|
Stand Of Choice |
Weight (net) |
Dimensions incl. Serenity (H x W x D) |
|
Original Serenity Stand w/ Module Compartment: |
10.3 kg |
137 x 43 x 55 cm |
|
Tripod w/ Module Tray: |
3.6 kg |
132 - 179 x 60 - 96 x 57 - 90 cm |
|
Minimalist Steel Tube w/ Cast Iron Base: |
9.2 kg |
155 x 45 x 58 cm |
|
Crossover Module Of Choice |
|
|
|
"PMA": |
|
Passive. Nominal SPL -4dB |
|
"AMA": |
|
Powered analogue crossover + 2-channel PWM amplifier w/ passive filter mod. |
|
Woofer Blinds: |
Yes |
Clip-on |
| Further Options/ Resources | ||
|---|---|---|
|
Color finish: |
At Buyer's Option |
|
|
Tactile Customization: |
At Buyer's Option |
|
